Customer Requirements

Detect defects in the battery top cover patch, sort out qualified and defective products, detect fast and accurately, and improve efficiency.

Our programme:

1.Vision detection principle:

①Image Acquisition: The optical system acquires the image, converts it into digital format and transfers it to the computer memory.

② Image Processing: The processor applies different algorithms to improve the image factors that have an impact on detection.

③ Feature extraction: the processor identifies and quantifies key features of the image, such as position, number, area, etc. This data is then transferred to the control programme.

④ Discriminate and control: the processor's control program makes conclusions based on the received data. For example, whether the position is in specification or not, or how the actuator moves to pick up a part.

2. Types of product defects:

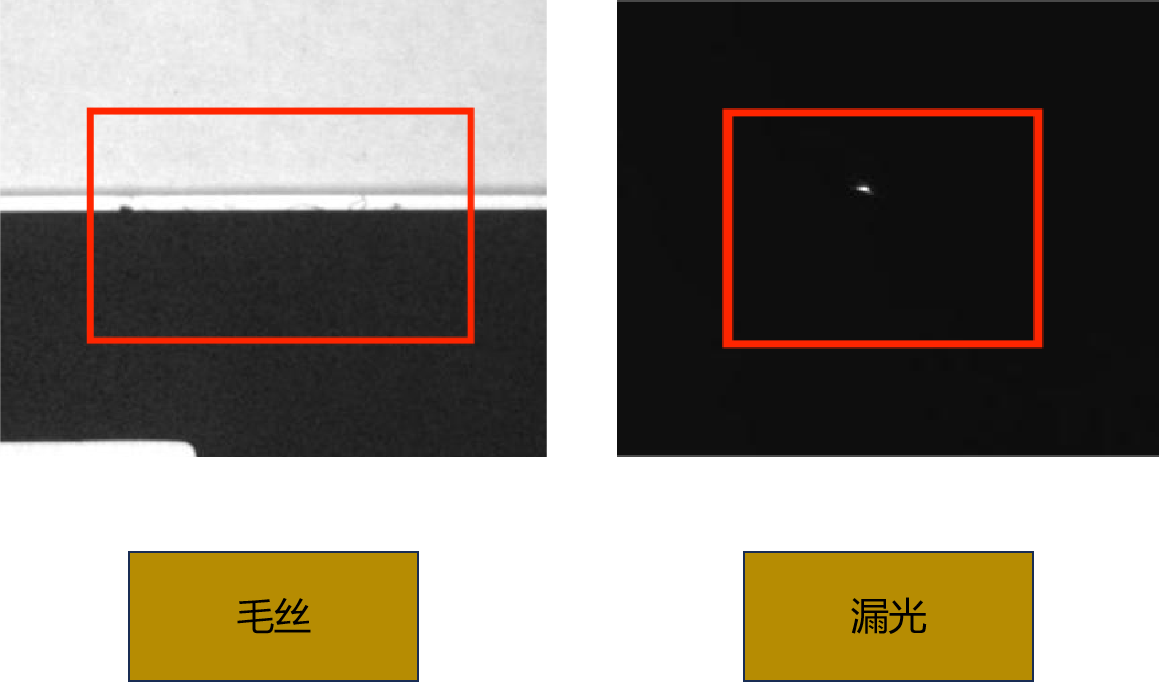

Plugged holes, fuzzy missing, creases and indentations, scratches, oil impurities, residual glue filaments, joints, surface dents and bumps, bumps and packages broken and leaking light;

3. Equipment and software
